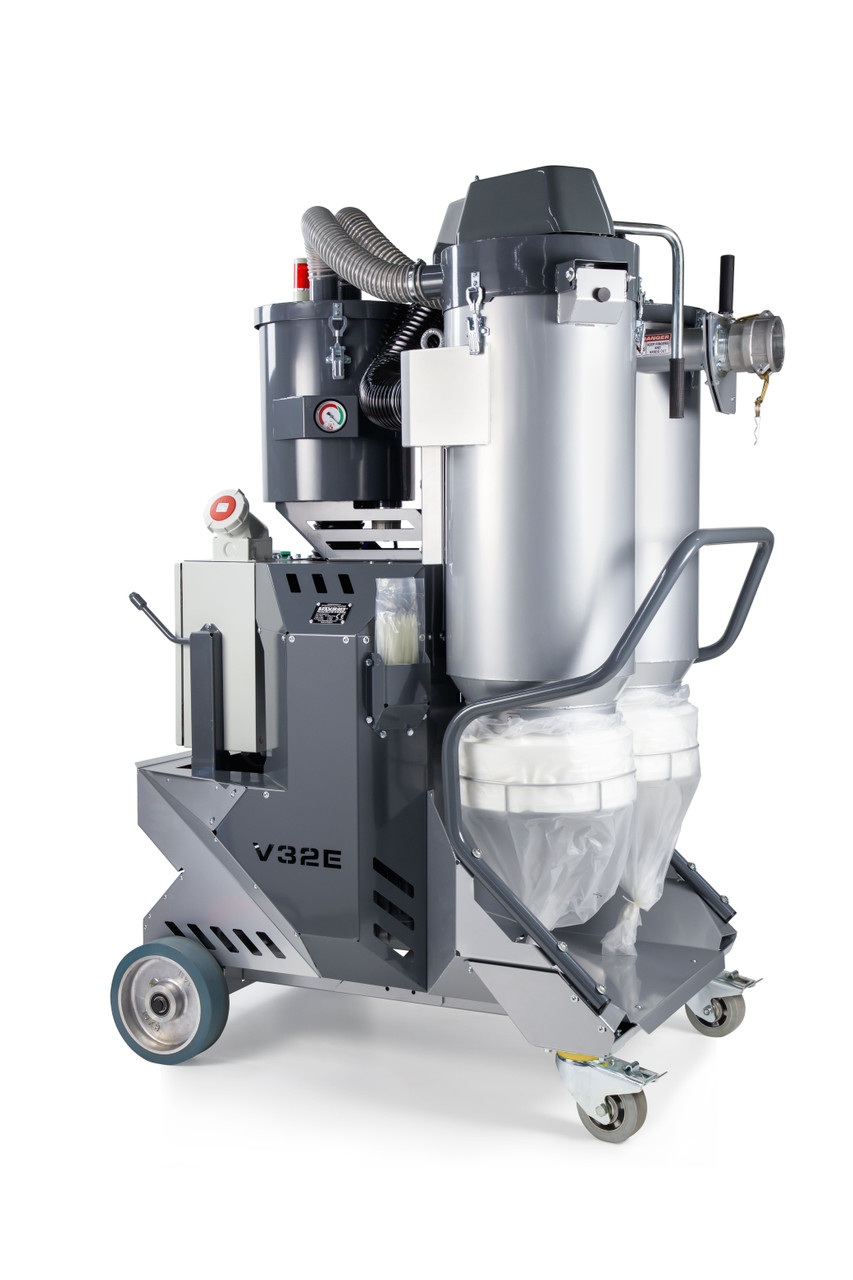

V32E Dust Extractor

V32E Dust Extractor

Categories: , Brand: ,

Description

Model V32E230: 3ph x 230V, 30.4Amps; 11.5hp/8.6kW ;490cfm, 112.5 water lift, D75 (75mm/3in) x 10m/32ft anti static main hose; Camlock; LONGOPAC; 1 Conical and 2 HEPA H13 filter; D50 (50mm/2in) hose and floor tool kit

Model V32E480: 3ph x 480V, 17.5Amps; 11.5hp/8.6kW ;490cfm, 112.5 water lift, D75 (75mm/3in) x 10m/32ft anti static main hose; Camlock; LONGOPAC; 1 Conical and 2 HEPA H13 filter; D50 (50mm/2in) hose and floor tool kit

Model V32E230AFC: Lavina 32E vacuum with Automatic Self Cleaning, 3ph x 230V, 30.4Amps; 11.5hp/8.6kW ;490cfm, 112.5 water lift, D75 (75mm/3in) x 10m/32ft anti static main hose; Camlock; LONGOPAC; 1 Conical and 2 HEPA H13 filter; D50 (50mm/2in) hose and floor tool kit

Model V32E480AFC: Lavina 32E vacuum with Automatic Self Cleaning, 3ph x 480V, 17.5Amps; 11.5hp/8.6kW ;490cfm, 112.5 water lift, D75 (75mm/3in) x 10m/32ft anti static main hose; Camlock; LONGOPAC; 1 Conical and 2 HEPA H13 filter; D50 (50mm/2in) hose and floor tool kit

  • FOUR-STAGE DUST COLLECTION FOR A DRAMATIC INCREASE IN CLEANING EFFICIENCY
    • Integrated pre-separator;
    • Second cyclone around the conical filter in the filter chamber, which captures the mid-sized particles;
    • Conical M class filter;
    • Hepa filter H13 as a last filtration point;
  • INTEGRATED EMERGENCY LAMP reminds the operator to clean filter.
  • OPTION TO UPGRADE TO AUTOMATIC CLEANING.
  • Conical filter with high air permeability and large filter area for better suction and longer working time between cleaning intervals. Large filter area.
  • Easy to access HEPA H13 filter to separate 99.95% of particles 0.15-0.23 µm.
  • Lighter and more compact body design.
  • New, easier to mount Longopac holders.
